Model GC Plus / GC 316

Saf-T Vent® GC is a single-wall venting system designed for multiple applications on Category I, II, III and IV gas appliances:

Single wall 18”-32” diameters ID
Engineered with over-lapping joint to keep condensate away from seal
Quick and easy installation with Patented Sure Seal™ locking system
Can be combined with single-wall Model EZ or with double-wall CI Plus
Tested and Listed to UL 1738 (Special Gas Vent) and ULC-S636 in Canada (Type BH Gas Vent)

Feature & Benefits:

Factory-built for high quality, durability and long life
Single wall 18”-32” diameters ID
Super ferritic stainless steel flue bearing conduit which meets UNS S44735 (29-4C) for superior resistance to acids commonly found in boiler flue condensate
Alternate 316L stainless steel inner material is also available where 29-4C may not be required
Component connection system engineered with an overlapping joint design to keep acidic condensate away from the seal (field-applied U.L. listed Heatfab sealant)

Feature & Benefits (Cont.):

Patented Sure Seal™ locking system for easier and quicker installation
Up to 550° F maximum temperature rating with low clearance to combustibles, including zero clearance applications
Array of components and accessories designed to make installation simple and quick
Tested and listed to UL 1738 (Special Gas Vent), ULC-S636 (Type BH Gas Vent)
Backed by Saf-T Vent 5-Year/15-Year Limited Warranty

ANSI Category I, II, III, & IV Vent Applications

Special gas vent, gas vent connector or masonry chimney liner
Negative, neutral, or positive pressure vent systems
Condensing or near-condensing gas vent systems

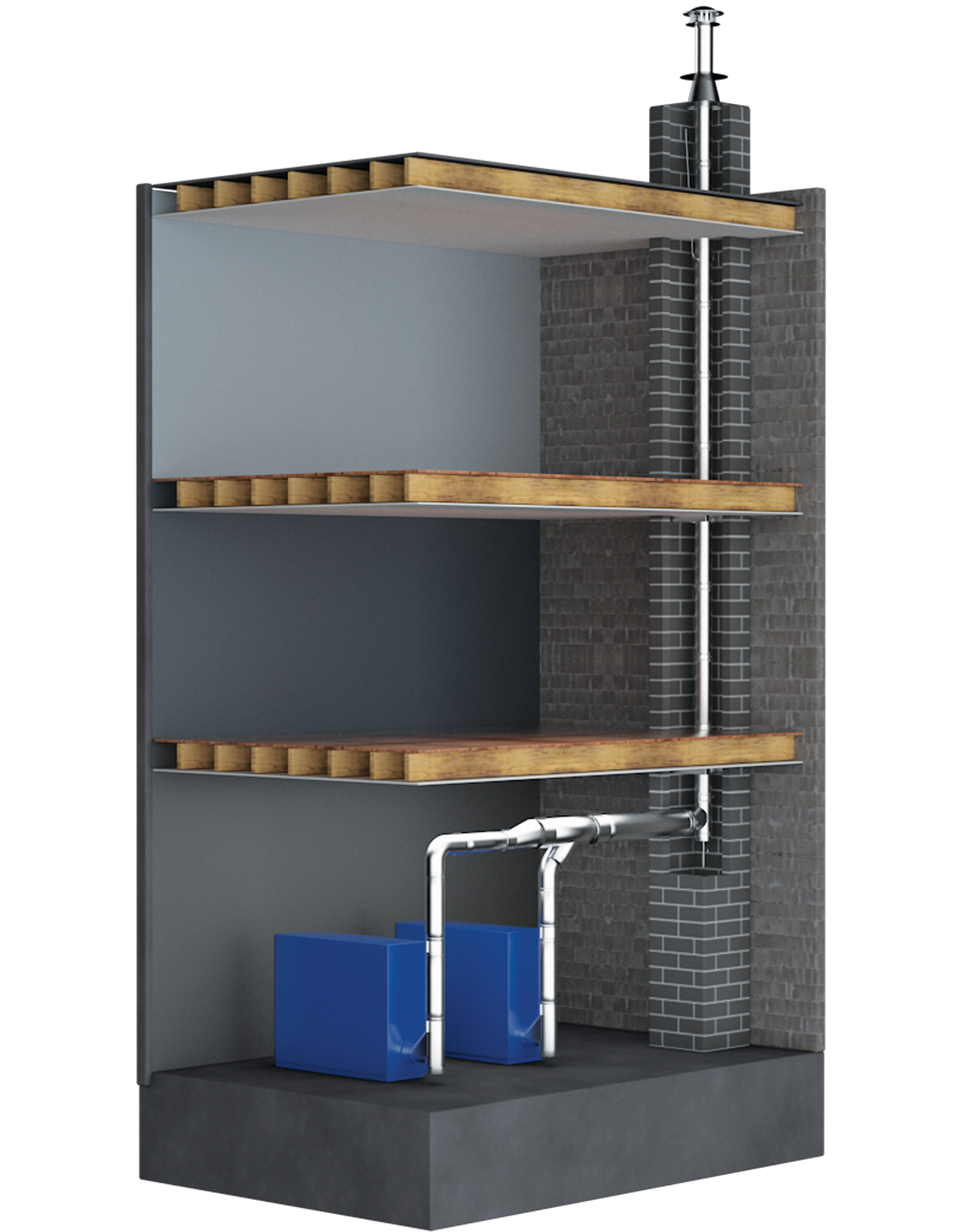

Heatfab Saf-T Vent is used in schools and government facilities, office buildings, hotels, hospitals, restaurants, retail space, multi-story tenant apartments, residential homes and more.
