Model EZ Seal Plus / EZ 316

Saf-T Vent EZ Seal is the fast and reliable venting solution for Category I, II, III, and IV gas appliances – no field sealant required:

Single wall 3”-16” diameters ID
Engineered with over-lapping joint to keep condensate away from seal
Factory-installed integral seal for quick and easy installation
Tested and Listed to UL 1738 (Special Gas Vent) and ULC-S636 in Canada (Type BH Gas Vent)

Features & Benefits:

Factory-built for high quality, durability and long life
Single wall 3”-16” diameters ID
Super ferritic stainless steel flue bearing conduit which meets UNS S44735 (29-4C) for superior resistance to acids commonly found in boiler flue condensate
Alternate 316L stainless steel inner material is also available where 29-4C may not be required
Component connection system engineered with an overlapping joint design to keep acidic condensate away from the seal
Patented Ring-and-Tab locking system allows quick and easy installation, with no tools required

Features & Benefits (Cont.):

Factory-installed integral seal for quick and easy installation
Up to 550° F maximum temperature rating with low clearance to combustibles, including zero clearance applications
Superior safety factor versus PVC/CPVC for higher flue temperatures attributed to over-firing appliances
Array of components and accessories designed to make installation simple and quick
Tested and listed to UL 1738 (Special Gas Vent), ULC-S636 (Type BH Gas Vent)
Backed by Saf-T Vent 5-Year/15-Year Limited Warranty

ANSI Category I, II, III, & IV Vent Applications:

Special gas vent for mid-efficiency and high-efficiency gas fired boilers, water heaters, unit heaters and furnaces
Negative, neutral, or positive pressure vent systems
Condensing or near-condensing gas vent systems

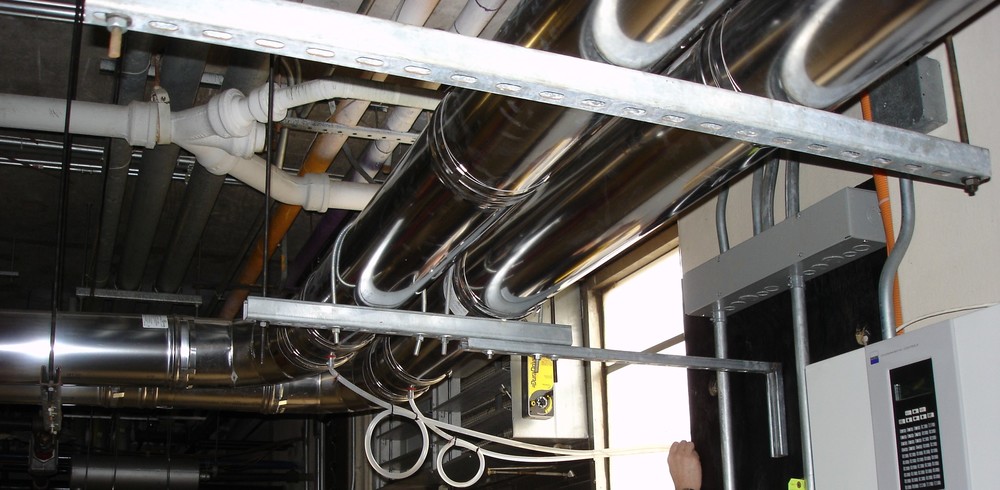

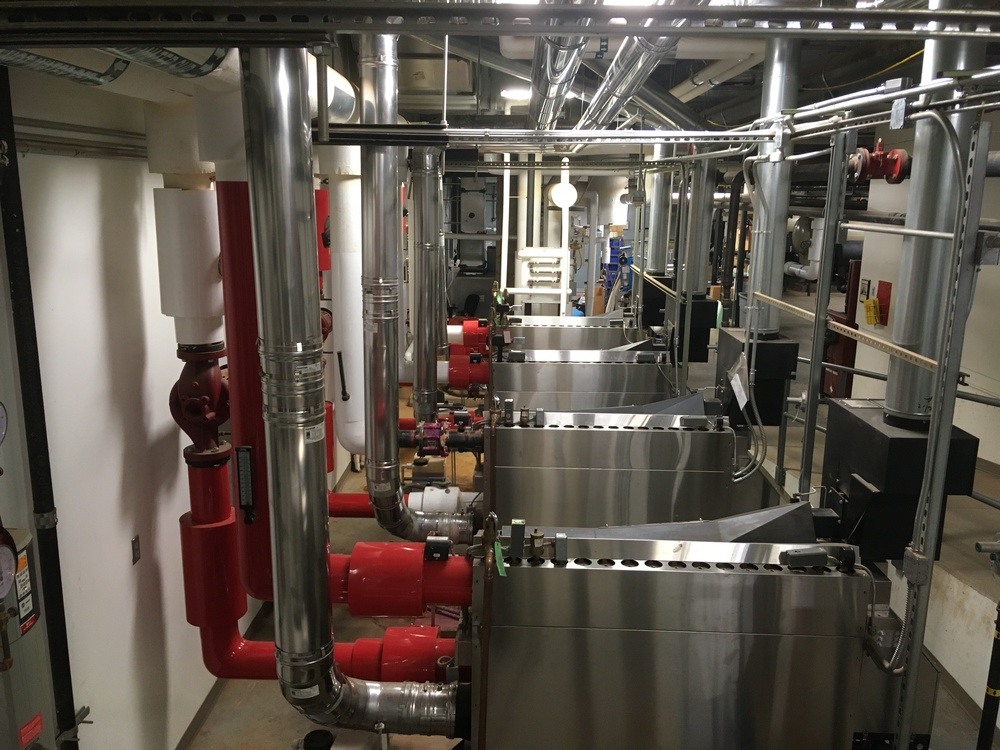

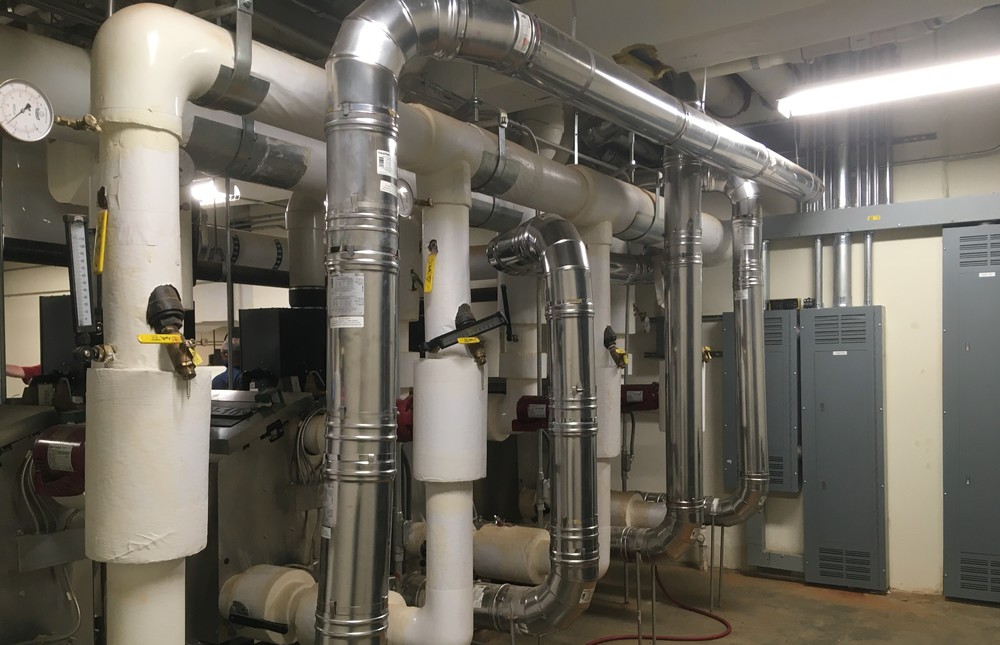

Heatfab Saf-T Vent is used in schools and government facilities, office buildings, hotels, hospitals, restaurants, retail space, multi-story tenant apartments, residential homes and more.
